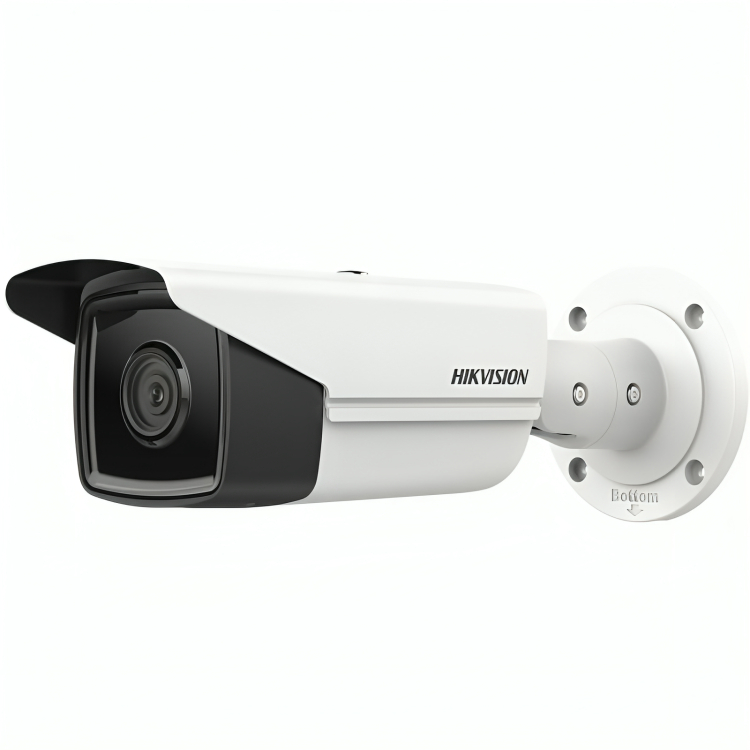

4 MP AcuSense Bullet Camera DS-2CD2T43G2-2I for Smart Surveillance

• • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time1/3 s to 1/100,000 s
  • Day & Night ICR Cut
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• • • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
    • Focal Length & FOV
      • 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
      • 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
      • 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
    • Lens Mount M12
    • Iris Type Fixed
    • ApertureF1.6

DORI

• • 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
  • 6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12 m

Illuminator

• • Supplement Light TypeIR
  • Supplement Light Range
    • -2I: up to 60 m
    • -4I: up to 80 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression
  • Mainstream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)Yes
• Region of Interest (ROI)1 fixed region for the main stream and the sub-stream

Network

• • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View Up to 6 channels
  • APIONVIF (Profile S, Profile G), ISAPI, SDK
  • User/Host Up to 32 users. 3 user levels: administrator, operator, and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10, IE 11
    • Plug-in-free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+


• • Image Parameters SwitchYes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch, Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR

Interface

• • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in microSD, up to 512 GB
  • Reset KeyYes

Event

• • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event
    • Line crossing detection, intrusion detection
    • Supports human and vehicle target classification
    • Face detection
  • Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General

• • Power
    • -2I: 12 VDC ± 25%, 0.71 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    • PoE: 802.3af, 36 V to 57 V, 0.27 A to 0.17 A, max. 9.5 W
    • -4I: 12 VDC ± 25%, 1.0 A, amx. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    • PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
  • Material
    • Aluminum alloy body
    • Sun shield, IR cover: plastic
  • DimensionØ105 × 299.7 mm (Ø4.1″ × 11.8″)
  • Package Dimension386 × 156 × 155 mm (15.2" × 6.2" × 6.2")
  • WeightApprox. 1070 g (2.4 lb.)
  • With Package Weight Approx. 1589 g (3.5 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language  33 languages
    • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval

• • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
