DS-8632NXI-K8 – 32-ch 4K AcuSense NVR | Hikvision K Series
- Model: DS-8632NXI-K8
- Type: 32-ch 2U 4K K Series AcuSense Network Video Recorder
- IP Camera Inputs: Up to 32 channels
- Decoding Capacity: 2-ch @ 12MP, 3-ch @ 8MP, 6-ch @ 4MP, or 12-ch @ 1080P
- Compression: H.265+/H.265/H.264+/H.264
- Bandwidth: Up to 256 Mbps
- Video Outputs: Dual HDMI and Dual VGA
- Storage: Supports up to 8 HDDs
- Smart Features: AcuSense analytics with deep learning
- Supplied by: Asian Technologies Ltd, Bangladesh

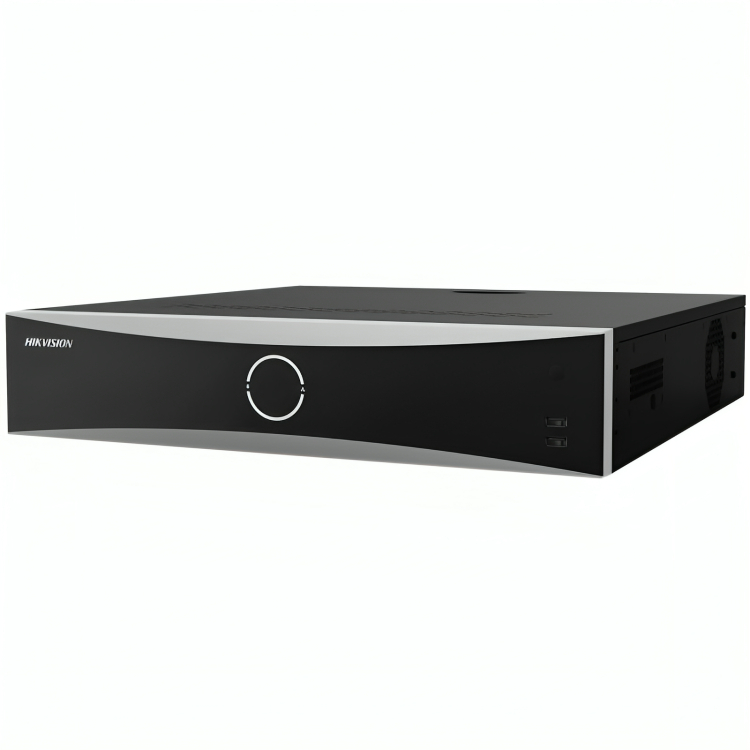

Hikvision DS-8632NXI-K8 – 32-ch 2U 4K K Series AcuSense NVR
The Hikvision DS-8632NXI-K8 is a high-performance 32-channel AcuSense NVR from the K Series line, purpose-built to deliver intelligent surveillance powered by deep learning. As one of the most capable 4K recorders in its class, this 2U NVR supports high-resolution video, dual output displays, and AI-driven analytics — making it ideal for medium to large-scale video security systems in Bangladesh.
4K UHD Recording with Deep Learning
This powerful NVR supports up to 32 IP cameras at once with input resolutions up to 12MP, ensuring you can capture every detail with clarity and reliability. The deep learning algorithm enables the system to deliver real-time human and vehicle classification, reducing false alarms and focusing only on real threats.
AcuSense Smart Analytics
The built-in AcuSense technology allows accurate detection of:
- Human intrusion
- Vehicle movement
- Line crossing
- Area intrusion
Unlike conventional NVRs, the DS-8632NXI-K8 filters out irrelevant motion and triggers alerts only for real targets, saving time and improving monitoring efficiency.
Flexible Display Options
This NVR includes:
- 2 HDMI video outputs
- 2 VGA outputs
Each supports different video sources for flexible multi-screen monitoring. Perfect for control rooms, command centers, and enterprise security setups.
Large Storage with 8 HDD Slots
With support for up to 8 SATA HDDs, the NVR ensures long-term 24/7 video storage. Ideal for businesses, malls, government institutions, and industrial zones that require high-capacity recording with uninterrupted performance.
Powerful Decoding Performance
The DS-8632NXI-K8 supports simultaneous decoding of:
- 2 channels @ 12MP
- 3 channels @ 8MP
- 6 channels @ 4MP
- 12 channels @ 1080P
Combined with 256 Mbps incoming bandwidth, it’s designed to handle high-resolution camera streams in real-time with zero lag.
Advanced Video Compression
Thanks to H.265+ compression, the recorder optimizes bandwidth and storage space, giving you more days of recording without expanding your storage infrastructure.
Remote Access & Mobile Monitoring
Through the Hik-Connect app, users can:
- View live footage
- Playback events
- Manage storage and alerts
- Receive real-time push notifications
Remote access empowers users to manage their security system on the go — whether from a laptop, tablet, or smartphone.
Applications Across Bangladesh
The DS-8632NXI-K8 is ideal for:
- Shopping malls
- Hospitals & clinics
- Government buildings
- Large corporate offices
- Banks & financial institutions
- Educational campuses
Why Buy from Asian Technologies Ltd?
As a leading Hikvision partner in Bangladesh, Asian Technologies Ltd ensures:
✅ Original Hikvision products with full warranty
✅ Fast delivery from local stock
✅ Pre-sales consultation and system layout planning
✅ On-site installation support and after-sales service
Secure Your System with DS-8632NXI-K8
Empower your surveillance setup with AI-powered detection and enterprise-grade performance. Contact Asian Technologies Ltd now to get the Hikvision DS-8632NXI-K8 at the best price with expert system integration support.
Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library : Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison4-ch
Motion Detection 2.0
- By DeviceAll channels, 4 MP video analysis for human and vehicle recognition to reduce false alarms
- By CameraAll channels
Perimeter Protection
- Human/Vehicle Analysis2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
Video and Audio
- IP Video Input32-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI 1 Output4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- HDMI 2 Output1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- VGA 1 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video Output Mode
- HDMI 1 and VGA 1 provide simultaneous video output and work as the main output;
- HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability
- AI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
- AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection128-ch
- Network Protocol TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- Serial Interface1 RS-232, 1 RS-485
- SATA8 SATA interfaces
- eSATA1 eSATA interface
- Capacity Up to 10 TB capacity for each disk
- Alarm In/Out16/ 9, the 9th alarm supports control 12V.
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Power output12V DC
General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)445×476×95 mm (17.5"×18.7"×3.7")
- ≤ 8 kg (17.6 lb)
Certification
- Obtained Certification CE, FCC, CB, IC, RCM, KCC, ICE-003
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
