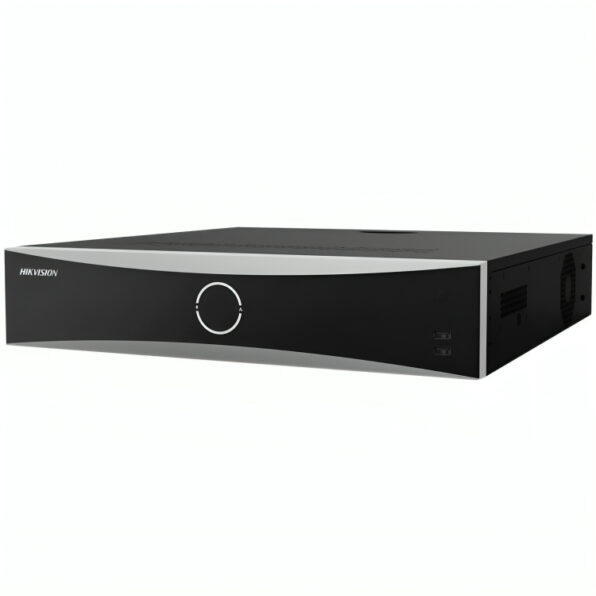

Embedded 4K NVR DS-8632NXI-K8 | Hikvision 32CH
- Model: DS-8632NXI-K8
- Type: 32-channel 2U 4K K Series AcuSense NVR
- Camera Inputs: Up to 32 IP channels
- Decoding Capacity: 2-ch @ 12MP / 3-ch @ 8MP / 6-ch @ 4MP / 12-ch @ 1080P
- Bandwidth: Up to 256 Mbps
- Video Compression: H.265+/H.265/H.264+/H.264
- Display: Dual HDMI and Dual VGA with different video outputs
- Storage: Supports up to 8 HDDs
- Features: Built-in deep learning algorithm for intelligent video analytics
- Supplied by: Asian Technologies Ltd, Bangladesh
Embedded 4K NVR DS-8632NXI-K8 – 32-Channel AcuSense NVR for Advanced Surveillance
The Hikvision DS-8632NXI-K8 is a powerful and intelligent 32-channel embedded 4K Network Video Recorder (NVR) built to meet the evolving demands of high-definition video surveillance. As part of Hikvision’s K Series and equipped with AcuSense technology, this NVR combines performance, capacity, and smart features to ensure next-level security across commercial, industrial, and institutional premises in Bangladesh.
Reliable Performance with 4K UHD Recording
With support for up to 32 IP camera inputs, the DS-8632NXI-K8 can handle surveillance for large properties and multi-location infrastructures. The system is capable of decoding 2 channels at 12MP, 3 at 8MP, 6 at 4MP, or 12 at 1080p simultaneously. Whether you’re monitoring multiple entrances, parking lots, or indoor environments, this NVR ensures real-time high-resolution video processing with optimal efficiency.
The NVR supports modern compression formats including H.265+, H.265, H.264+, and H.264, significantly reducing bandwidth and storage requirements without compromising video quality. This ensures you get longer retention periods and cost-effective storage solutions.
Intelligent AcuSense Technology Built-In
What sets this NVR apart is its deep learning-based AcuSense analytics. AcuSense technology enables the system to differentiate between humans and vehicles versus non-critical motion events (e.g., animals, leaves, shadows). This drastically reduces false alarms and ensures operators respond only to actual threats. Smart features like line crossing detection, intrusion detection, and motion tracking are available for connected AcuSense-enabled cameras.
High Bandwidth and Display Capabilities
This model supports up to 256 Mbps incoming bandwidth, ensuring smooth and real-time streaming even with multiple 4K cameras. The system is built with 2 HDMI and 2 VGA interfaces (each delivering different video outputs), making it ideal for command centers and control rooms that need multiple display screens simultaneously.
Large Storage & Continuous Recording
The DS-8632NXI-K8 supports up to 8 hard disk drives (HDDs) for high-capacity storage. It’s built for continuous 24/7 video recording, which is essential for critical infrastructure like banks, airports, commercial complexes, educational institutions, and government facilities. Smart HDD management features like S.M.A.R.T. monitoring, RAID configuration, and HDD quota settings enhance reliability and data protection.
Seamless Integration & User-Friendly Operation
This NVR is designed for easy installation and compatibility with Hikvision IP cameras, as well as third-party ONVIF-compatible models. The system comes with a modern web interface, mouse-driven GUI, and can be managed via Hik-Connect, Hikvision’s mobile app for remote access.
It also features:
-
Role-based user management
-
Event-triggered recording
-
USB backup and firmware upgrades
-
Scheduled recording with time-slicing
Ideal Applications in Bangladesh
The Hikvision DS-8632NXI-K8 is ideal for medium to large-scale installations including:
-
Commercial buildings & shopping malls
-
Banks and ATMs
-
Industrial factories & warehouses
-
Government offices
-
University campuses and school compounds
-
Hotels, hospitals, and housing complexes
Why Choose Asian Technologies Ltd?
As a trusted supplier of Hikvision surveillance systems in Bangladesh, Asian Technologies Ltd offers:
✅ Original Hikvision products with manufacturer warranty
✅ Local inventory for fast project delivery
✅ Certified technical team for installation & configuration
✅ Ongoing after-sales maintenance and system upgrades
We provide tailored consultation, system design, and implementation services to ensure that you get the most value from your surveillance investment.
Get Hikvision DS-8632NXI-K8 NVR Today
Protect your premises with the intelligence and power of the Hikvision DS-8632NXI-K8 32CH NVR. Contact Asian Technologies Ltd now for pricing, system consultation, and professional deployment support.
-
Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library : Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison4-ch
-
Motion Detection 2.0
- Motion Detection 2.0
- By DeviceAll channels, 4 MP video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
-
Perimeter Protection
- Human/Vehicle Analysis2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
-
Video and Audio
- IP Video Input32-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI 1 Output4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- HDMI 2 Output1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- VGA 1 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video and Audio
- HDMI 1 and VGA 1 provide simultaneous video output and work as the main output.
- HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
-
Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability
- AI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
- AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps)
-
Network
- Remote Connection128-ch
- Network Protocol TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
-
Auxiliary Interface
- Serial Interface1 RS-232, 1 RS-485
- SATA8 SATA interfaces
- eSATA1 eSATA interface
- Capacity Up to 10 TB capacity for each disk
- Alarm In/Out16/9, the 9th alarm supports control 12V.
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Power output12V DC
-
General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10 to 90 %
- Dimension (W × D × H)445×476×95 mm (17.5"×18.7"×3.7")
- ≤ 8 kg (17.6 lb)
-
Certification
- Obtained Certification CE, FCC, CB, IC, RCM, KCC, ICE-003
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
