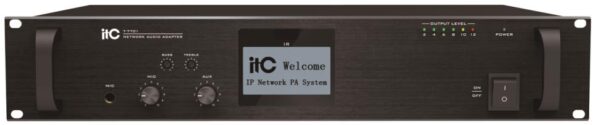

ITC T-7701 – Economic Rack Mount IP Network Audio Adapter

Product Overview

---

The ITC T-7701 is an economical yet highly versatile rack-mounted IP network audio adapter, purpose-built for integrating traditional audio amplification with modern IP-based broadcast systems. Commonly installed in low voltage rooms or parallel rooms of radio management zones, it serves as a cost-effective choice for broadcasting to halls, corridors, and outdoor areas, effortlessly pairing with two sets of power amplifiers. Designed with robust industrial standards, the T-7701 seamlessly combines analog and digital domains, enabling facilities to manage local or network-triggered audio with clear priority control, automated power management, and flexible connectivity.

Key Features

---

• Professional Rack-Mount Design
  • Built on a 19-inch rack format with a sleek black alumina panel, solid handles, and precision mechanical assembly, delivering a high-end visual appeal.
• Industrial-Grade Display & Remote
  • Features a 3.4-inch LCD screen to display operating status and supports infrared remote control for on-demand selection, playback, and pause from the server’s program library.
• Embedded Processing & DSP Audio
  • Employs embedded PC technology and DSP audio processing for stable, high-quality digital performance.
• High-Fidelity Network Decoding
  • Equipped with a hardware network audio decoding module supporting TCP/IP, UDP, and IGMP multicast protocols to deliver 16-bit CD-quality audio across your IP infrastructure.
• Flexible Local Inputs
  • Includes one AUX line input and one MIC input with independent bass and treble adjustments; also supports offline local paging without Internet connectivity.
• Priority Emergency Handling
  • EMC input interface for direct emergency alarm audio with the highest priority
  • Configurable priority levels:
  • EMC (highest)
  • Network alarm over MIC, AUX & BGM
  • MIC over AUX & network BGM
  • AUX and network BGM equal priority
• Extensive Outputs & Volume Control
  • Two auxiliary XLR outputs to connect external amplifiers
  • Two three-wire relay outputs for volume control, compatible with four-wire systems (requires DC 24V for four-wire)
• Smart Power Management
  • Automatically powers down output when idle and reactivates upon detecting music or paging, optimizing energy use.
• Advanced Features
  • Silence intensity preset reduction
  • Background accompaniment preset
  • Indicator lights for level, protection, and standby modes
  • Unified user/password management via server
• Wide Network Compatibility
  • Works flawlessly with routers, switches, bridges, modems, the Internet, and mobile data (2G, 3G, 4G), supporting both multicast and unicast.
• Remote Upgrades & USB Playback
  • Facilitates remote hardware updates to minimize on-site maintenance and offers local or remote USB music playback with full control (next, previous, stop, pause).

Ideal Applications

---

• Multi-zone commercial and office complexes
• University and school building broadcast systems
• Hospital corridors and ward paging
• Mosques and large prayer halls
• Outdoor parks and venue audio integration

Why Choose Asian Technologies Ltd?

---

Asian Technologies Ltd stands as Bangladesh’s leading supplier of ITC IP audio solutions, delivering:

• Certified ITC network audio adapters with warranty
• Complete installation & integration services
• Local inventory for rapid deployment
• Full technical support and ongoing maintenance
