LSN LOOP MODULE 2
Bosch BCM-0000-B Battery Controller Module monitors the power supply of the fire panel and the charging of the batteries
| System Components |
Fire Alarm Control Panel
|
| Brand |
Bosch
|
| Model Name/Number |
LSN 0300 A
|
| Automation Grade |
Automatic
|
| Weight |
Approx. 225 g
|
| Operating Humidity |
95 % , non-condensing
|
| Dimension |
Approx. 127 x 96 x 60 mm
|
| Material |
ABS Plastic, (UL94 V-0)
|
| Output Voltage (LSN) |
30 +- 1.0 V DC
|
| Max. Line Length |
1600 m, depending on configuration and cable type
|
| Protection class as per IEC 60529 |
IP 30
|
Line length up to 1600 m, depending on configuration and cable type
Unshielded cable can be used
Line current up to 300 mA, depending on configuration and cable type
Additional voltage output (ERT-capable)
Flexible network structures (loop, stub, and T-tap)
Addressing techniques: LSN improved auto addressing, LSN classic auto-addressing and manual address assignment.This module allows the connection of an LSN loop with up to 254 LSN improved elements or 127 classic LSN elements, with a maximum line current of 300 mA.
• For operation of the fire detection system according to EN 54-13, it is necessary to terminate every stub and T-tap with EOL-modules.
Related Products
• UL & ULC Listed
• Designed for use with all NS analog sensors
• Available in 4 and 6 inch models
• Contains a security locking tab for tamper protection
Product Code: SCI (0400-01079)
The DCP-SCI short circuit isolator should be located between any devices on the SLC loop. In the event of a short on the SLC loop, the two adjacent isolators (closest isolators to the left and right of the shorted section) will activate and their respective LED indicators will be turned on. All devices between the active short circuit isolators will lose communication. This will prevent entire loop failure. Upon removal of the short condition, the DCP-SCIs will automatically restore the entire loop to the normal operating state.
The Hochiki PE series of power supplies is designed to provide the power and flexibility needed for the most demanding fire
system installations. The PE-10SN is a 10 Amp 24Vdc switch mode power supply design which is up to 50% more efficient than
linear mode supplies the PE series is your best choice for powering fire system notification appliances and accessories. New
and retrofit construction requirements for ADA compliance are easily accomplished with ample power for additional notification
appliances along with the ability to synchronize the notification appliances using built in sync generation for Potter, System
Sensor ®, Gentex® and Wheelock ® notification appliances. The PE series goes even further to make retrofits easier with the
advanced QuadraSync feature which allows notification appliances from different manufacturers to sync with each other. You
also have the option to monitor an existing circuit by placing a reference resistor of the same value on the power supply and
continuing to monitor the circuit without changing the field EOL.
STANDARD FEATURES
Low profile – only 2.00″ high, including base
Simple and reliable device addressing method
Uses the noise immune Digital Communication
Protocol (DCP), which utilizes interrupts for fast
response to fires
Rate of rise temperature threshold = 15°F/Min
(determined by panel)
Adjustable threshold temperature = 135°F – 190°F
(determined by panel)
UL maximum spacing of 70 feet

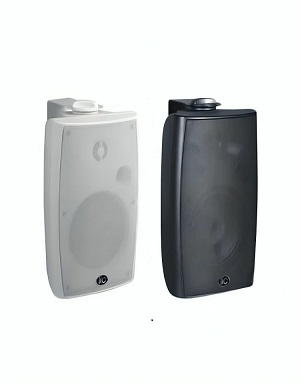

ITC T-774H Wall Mount Loud Speaker Specs:
| Model | T-774HW |
| Power Taps @100V | 2.5W, 5W, 10W, 20W |
| Power Taps @70V | 1.25W, 2.5W, 5W, 10W, 20W |
| Transformer Impedance | 4KΩ/2KΩ/1KΩ/500Ω/250Ω |
| Input | 70V/100V/8Ω |
| SPL(1W/1M) | 86dB |
| Max. SPL (Rated W/1M) | 99dB |
| Frequency Response (-10dB) | 120-18KHz |
| Finish | Baffle: ABS, Black/White Grille: Steel, Black/White |
| Speaker Driver | 4″ x 1 1.5″ x 1 |
| Dimension | 260 x 170 x 170mm |
| Weight | 2.3kg |
| Mounting | With mounting bracket fixed by screw |
99 in stock
| Material |
Plastic
|
| Usage/Application |
Office Buildings
|
| Power Source |
Electric
|
| Automation Grade |
Semi-Automatic
|
| Voltage |
24 V
|
| Frequency |
50 Hz
|
| Weight |
300 gm
|
| Model Number |
FAS-420
|
- High deceptive alarm immunity with intelligent signal processing LOGIC·SENS
- Innovative airflow monitoring including single-hole monitoring detects obstruction and breakage
- Initial set-up made easy by automatic initialization
- Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators
- SL-versions: Noise reduction to 38 dB(A) by extremely quiet fan and up to 34 dB(A) with additional sound absorber

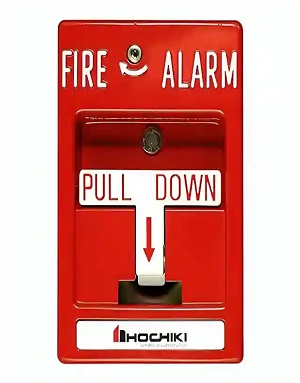

The DCP-AMS are the Hochiki America series of addressable manual pull stations that provide a fast and practical means of manually initiating a fire alarm signal. Both single action and dual action manual pull stations are available. Resetting of the pull station requires either a 1/8″ hex key.
99 in stock
Reliable operation, even if the lens is contaminated by a film of oil, dust, water vapor or ice MOD. 016589
- Integrated control unit
- Auto-Alignment with motorized detector head
- Light Cancellation Technology
- Building Movement Tracking
- Detection range up to 393 ft
Product Code: 0500-05890
The Hochiki HEH Series Horn
99 in stock
