PE-10SN – 10 Amp, 6-Circuit with QuadraSync, 24VDC-asian-technologies-ltd
The Hochiki PE series of power supplies is designed to provide the power and flexibility needed for the most demanding fire
system installations. The PE-10SN is a 10 Amp 24Vdc switch mode power supply design which is up to 50% more efficient than
linear mode supplies the PE series is your best choice for powering fire system notification appliances and accessories. New
and retrofit construction requirements for ADA compliance are easily accomplished with ample power for additional notification
appliances along with the ability to synchronize the notification appliances using built in sync generation for Potter, System
Sensor ®, Gentex® and Wheelock ® notification appliances. The PE series goes even further to make retrofits easier with the
advanced QuadraSync feature which allows notification appliances from different manufacturers to sync with each other. You
also have the option to monitor an existing circuit by placing a reference resistor of the same value on the power supply and
continuing to monitor the circuit without changing the field EOL.
System Features
• Input voltage: 120/240VAC 50/60Hz
• Output voltage 24VDC @ 10A
• Six class “B” Style “Y” notification circuits on the PE-10SN
• Rated at 3 amps max each
• Can be configured as up to three class “A” Style “Z” notification circuits
• Supervised Battery Charger: 27.3 @ 1A (supports 7-55 Ahr batteries)
• Integrated battery cut-off circuitry to protect batteries from deep discharge
• Two Trouble Relays (5A at 30VDC)
• General System Trouble (programmable for AC delay via dip-switch)
• Low AC Trouble
• Diagnostic LED’s
• Status LED’s for Active NAC and NAC trouble conditions
• Status LED’s for Earth Fault (Amber), AC (Green), Battery Fault (Amber)
• Trouble Memory feature captures troubles which have previously restored.
• Synchronized notification appliance circuits
• Potter
• Wheelock®
• Gentex®
• System Sensor®
• Configurable output circuits (D.I.P. switch sets options for each circuit)
• ANSI temporal-coded
• Constant Power
• Door-Holder Power
• Separate DC Power Output (3A)
• Two Trigger Inputs (Class A, Style Z or Class B, Style Y)
• Reference EOL terminals, allows 2K – 27K EOL value to be used
• QuadraSync panel wide synchronization of same or multiple brands.
• PassThru mode copies input signals to output (can be used in conjunction with QuadraSync
Mounting Instructions
The standard mounting is a surface mount cabinet. The unit must be securely attached to a permanent partition using suitable
fasteners. Five mounting holes are provided to accept ¼ inch diameter screws maximum. There are seven knock outs provided.
Operating Instructions
Alarm Condition
Notification Appliance Circuit:
Alarm devices operate in unison with the Trigger inputs from the main Fire Alarm Control Panel (FACP). When activated by
the corresponding trigger input the associated Notification Appliance Circuit (NAC) will reverse polarity from a supervision state
to the alarm state and supply power to the associated notification appliances until the trigger is removed. Each activated NAC
will also power the L.E.D. associated with it, the L.E.D. will follow the steady or pulsing state of the NAC. The alarm-activated
outputs are reset through the operation of the reset function of the Main FACP.
Electrical Operating Characteristics
Input Voltage 120 VAC @ 5.1 Amps or 240 VAC @ 2.5 Amps (Jumper selected) 50/60 Hz
Input Trigger 8 VDC to 33 VDC (15 ma) filtered or full wave rectified. Polarity reversal or continuous
voltage
Output Voltage 24 VDC @ 10 Amps
Notification Outputs 24 VDC 3.0 Amps Maximum, Polarity Reversal
DC Power 3.0 Amps
Total System Current PE-10SN = 10 Amps
(total system load from all output circuits must not exceed 10 amps total
Related Products
100 in stock
- Integrated control unit
- Auto-Alignment with motorized detector head
- Light Cancellation Technology
- Building Movement Tracking
- Detection range up to 393 ft
Model TS-0310/ TS-0310A
Microphone type Electret condenser microphone
Microphone directivity Cardioid
Frequency response 80Hz~16KHz
99 in stock
| Customization: | Available |
|---|---|
| Color: | Grey |
| Type: | Simultaneous Interpretation System |
Product Code: 0500-06100
TheHochiki HCC Series Horn Strobe
89 in stock
- Make: Hochiki America
- Model code: ALN-V
- Type: Smoke
- Style: Photoelectric
- Hochiki America is a photoelectric smoke sensor with the following features: • Low profile – Only 2.00″ high, including base• Simple and reliable device addressing• Automatic compensation for sensor contamination• Built-in fire
• UL & ULC Listed
• Designed for use with all NS analog sensors
• Available in 4 and 6 inch models
• Contains a security locking tab for tamper protection
Product Code: OTC2367
The T-6702 is a full-duplex network audio paging microphones, built-in one-way and two-way communication system. This paging microphone could be installed anywhere on the LAN system. The T-6702 network paging microphone has several paging modes include zone paging, group paging, all zone paging, two-way intercom, conference system, discussion system & voting system.
The T-6702 is built-in an LCD to display program status and its IP address, the end-user is accessible to change the IP setting with a password. It is built-in a 1W speaker with excellent sound clearance so as to ensure the communication is smooth and clear. This microphone design is adopted advanced technology to avoid echo noise and to avoid data delay as well.
65 in stock
SKU: S758Category: Taktis Panels
Tags: fire alarm control panel, kentec taktis
Product Code: 0200-03460

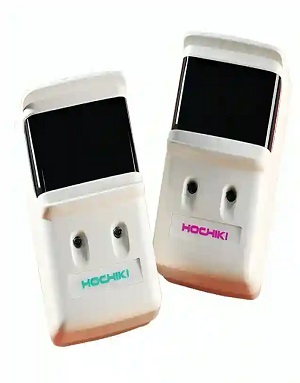

The Hochiki SPC-24 Projected Beam Smoke Detector consists of an emitter and receiver. The SPC-24 detector should be placed so that smoke generated by a fire will likely rise into the path of the beam. The receiver is constantly monitoring and measuring the intensity of the beam transmitted by the emitter. Should the smoke from a fire cause a decrease in the signal strength of a magnitude that exceeds the programmed obscuration setting, an alarm signal is generated.
